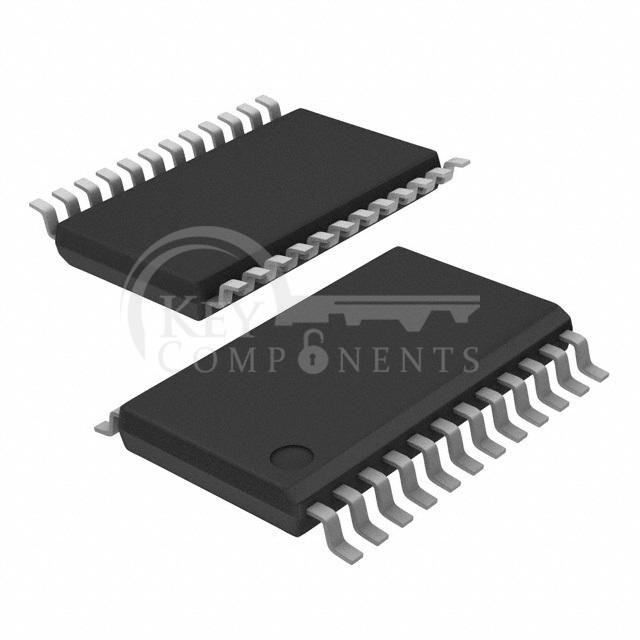

TPS40091PWR

TPS40091PWR

Manufacturer Part TPS40091PWR
Manufacturer Texas Instruments
Description IC REG CTRLR BUCK 24TSSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Type:PWM Signal
Function:Step-Down
Output Configuration:Positive
Topology:Buck
Number of Outputs:4
Output Phases:4
Voltage - Supply (Vcc/Vdd):4.5V ~ 15V
Frequency - Switching:100kHz ~ 1.2MHz
Duty Cycle (Max):87.5%
Synchronous Rectifier:No
Clock Sync:Yes
Serial Interfaces:-
Control Features:Current Limit, Enable, Frequency Control, Power Good, Soft Start
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:24-TSSOP (0.173", 4.40mm Width)
Supplier Device Package:24-TSSOP
