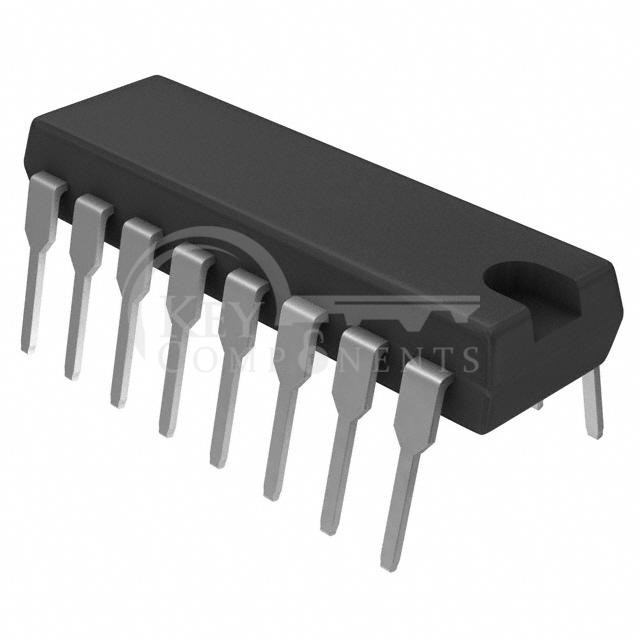

TL1451ACN

TL1451ACN

Manufacturer Part TL1451ACN
Manufacturer Texas Instruments
Description IC REG CTRLR BCK/BST/FLYBK 16DIP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Type:Transistor Driver
Function:Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:Positive
Topology:Buck, Boost, Flyback
Number of Outputs:2
Output Phases:1
Voltage - Supply (Vcc/Vdd):3.6V ~ 50V
Frequency - Switching:1kHz ~ 500kHz
Duty Cycle (Max):-
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Frequency Control
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Through Hole
Package / Case:16-DIP (0.300", 7.62mm)
Supplier Device Package:16-PDIP
