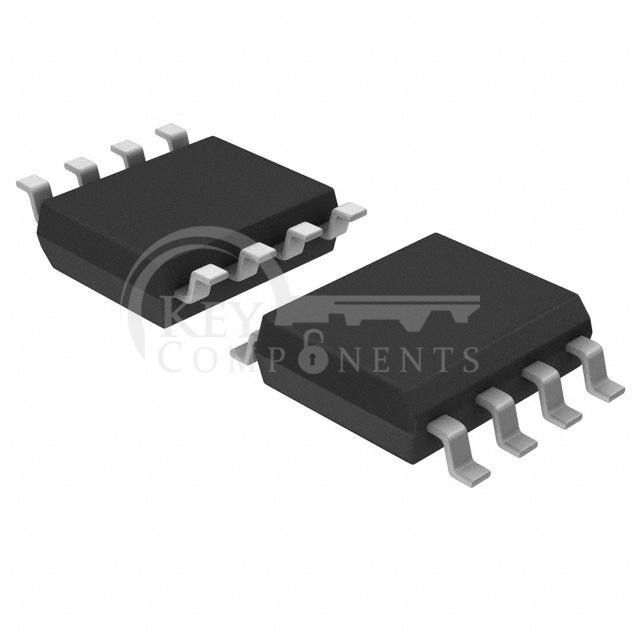

TL5001ACD

TL5001ACD

Manufacturer Part TL5001ACD
Manufacturer Texas Instruments
Description IC REG CTRLR BCK/BST/FLYBK 8SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Type:Transistor Driver
Function:Step-Up, Step-Down, Step-Up/Step-Down
Output Configuration:Positive
Topology:Buck, Boost, Flyback
Number of Outputs:1
Output Phases:1
Voltage - Supply (Vcc/Vdd):3.6V ~ 40V
Frequency - Switching:20kHz ~ 500kHz
Duty Cycle (Max):100%
Synchronous Rectifier:No
Clock Sync:No
Serial Interfaces:-
Control Features:Dead Time Control, Frequency Control
Operating Temperature:-20°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
