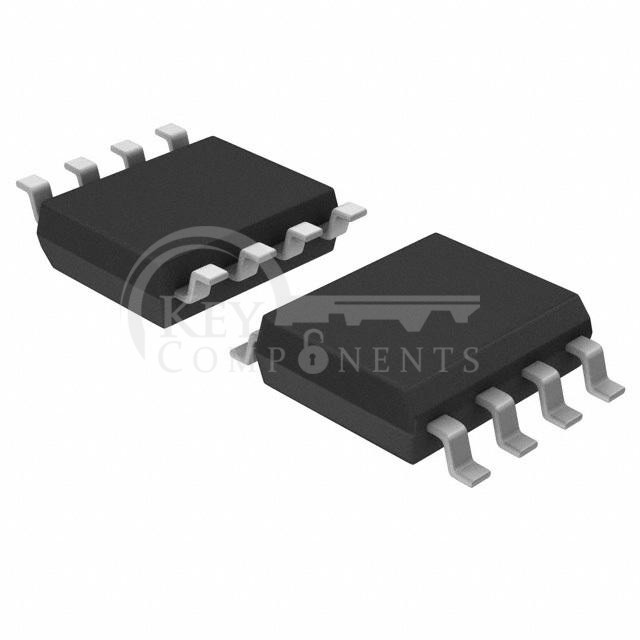

TL3843D-8
| Manufacturer Part | TL3843D-8 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC REG CTRLR MULT TOPOLOGY 8SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Type: | Transistor Driver |
| Function: | Step-Up, Step-Up/Step-Down |
| Output Configuration: | Positive |
| Topology: | Boost, Flyback, Forward |
| Number of Outputs: | 1 |
| Output Phases: | 1 |
| Voltage - Supply (Vcc/Vdd): | 7.6V ~ 30V |
| Frequency - Switching: | Up to 500kHz |
| Duty Cycle (Max): | 97% |
| Synchronous Rectifier: | No |
| Clock Sync: | No |
| Serial Interfaces: | - |
| Control Features: | Frequency Control |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
