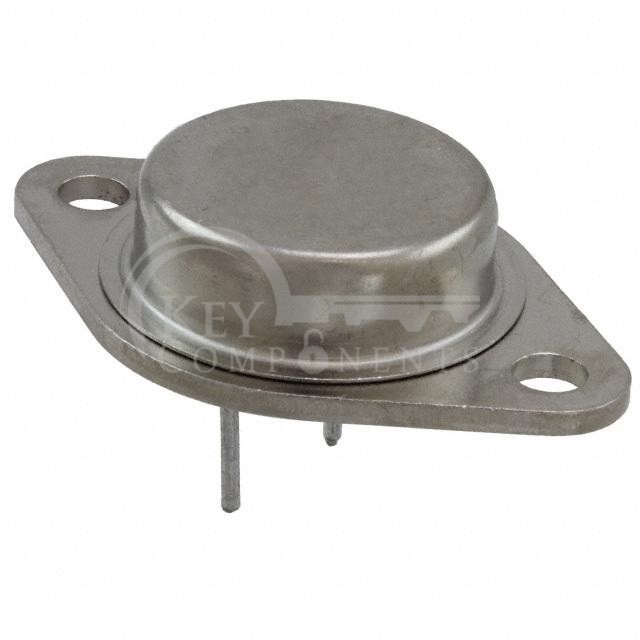

JANTX2N6058

Manufacturer Part	JANTX2N6058
Manufacturer	Microchip Technology
Description	TRANS NPN DARL 80V 12A TO3
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
Transistor Type:	NPN - Darlington
Current - Collector (Ic) (Max):	12 A
Voltage - Collector Emitter Breakdown (Max):	80 V
Vce Saturation (Max) @ Ib, Ic:	3V @ 120mA, 12A
Current - Collector Cutoff (Max):	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:	1000 @ 6A, 3V
Power - Max:	150 W
Frequency - Transition:	-
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-204AA, TO-3
Supplier Device Package:	TO-3
