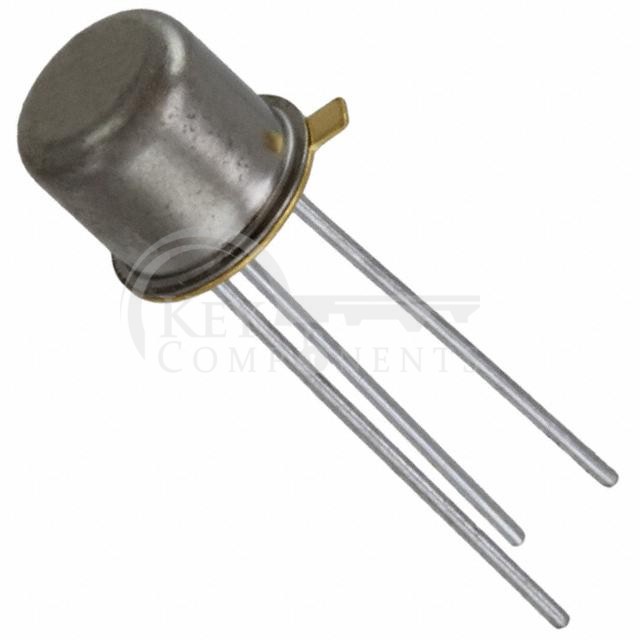

JANS2N2222A

JANS2N2222A

Manufacturer Part JANS2N2222A
Manufacturer Microchip Technology
Description TRANS NPN 50V 0.8A TO18
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):800 mA
Voltage - Collector Emitter Breakdown (Max):50 V
Vce Saturation (Max) @ Ib, Ic:1V @ 50mA, 500mA
Current - Collector Cutoff (Max):50nA
DC Current Gain (hFE) (Min) @ Ic, Vce:100 @ 150mA, 10V
Power - Max:500 mW
Frequency - Transition:-
Operating Temperature:-65°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-206AA, TO-18-3 Metal Can
Supplier Device Package:TO-18 (TO-206AA)
