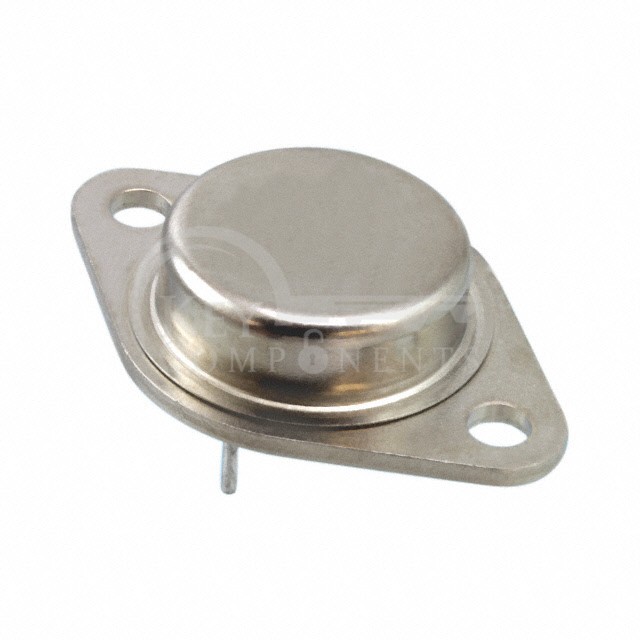

JANTX2N3442

JANTX2N3442

Manufacturer Part JANTX2N3442
Manufacturer Microchip Technology
Description TRANS NPN 140V 10A TO3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Transistor Type:NPN
Current - Collector (Ic) (Max):10 A
Voltage - Collector Emitter Breakdown (Max):140 V
Vce Saturation (Max) @ Ib, Ic:1V @ 300mA, 3A
Current - Collector Cutoff (Max):-
DC Current Gain (hFE) (Min) @ Ic, Vce:20 @ 3A, 4V
Power - Max:6 W
Frequency - Transition:-
Operating Temperature:-55°C ~ 200°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
