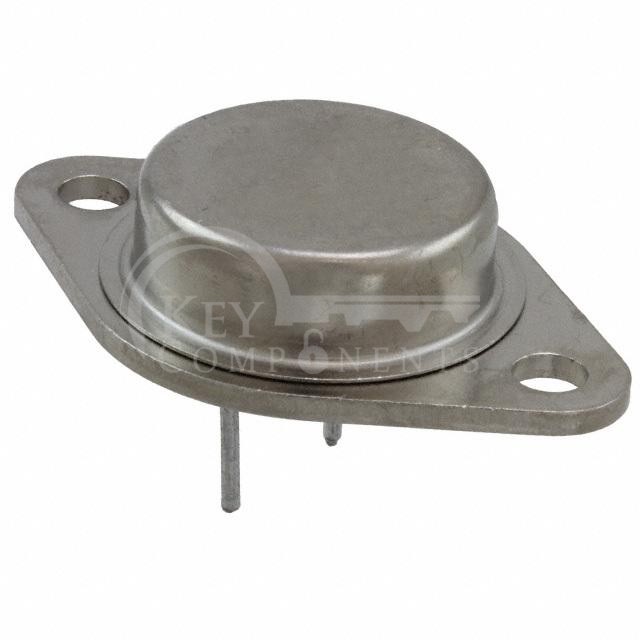

JANTX2N6287

JANTX2N6287

Manufacturer Part JANTX2N6287
Manufacturer MACOM Technology Solutions
Description TRANS PNP DARL 100V 20A TO3
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Discontinued at Digi-Key
Transistor Type:PNP - Darlington
Current - Collector (Ic) (Max):20 A
Voltage - Collector Emitter Breakdown (Max):100 V
Vce Saturation (Max) @ Ib, Ic:3V @ 200mA, 20A
Current - Collector Cutoff (Max):1mA
DC Current Gain (hFE) (Min) @ Ic, Vce:1000 @ 6A, 3V
Power - Max:175 W
Frequency - Transition:-
Operating Temperature:-65°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-204AA, TO-3
Supplier Device Package:TO-3
