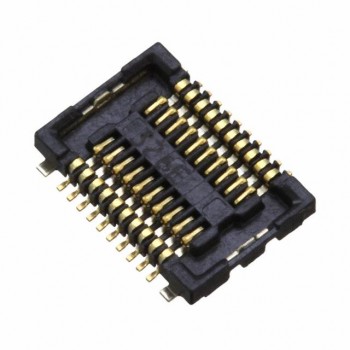

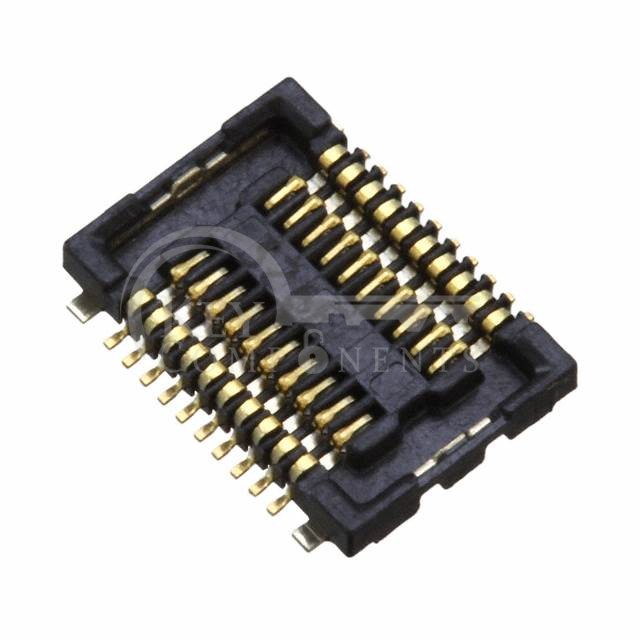

AXK7L20223G

AXK7L20223G

Manufacturer Part AXK7L20223G
Manufacturer Panasonic Electric Works
Description CONN SOCKET 20POS SMD GOLD
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Connector Type:Socket, Center Strip Contacts
Number of Positions:20
Pitch:0.016" (0.40mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Solder Retention
Contact Finish:Gold
Contact Finish Thickness:-
Mated Stacking Heights:0.9mm
Height Above Board:0.034" (0.86mm)
