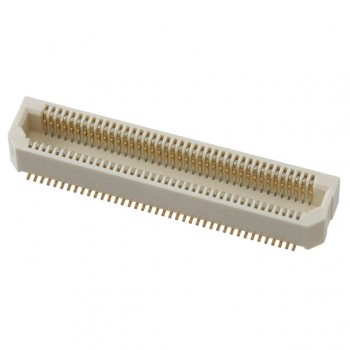

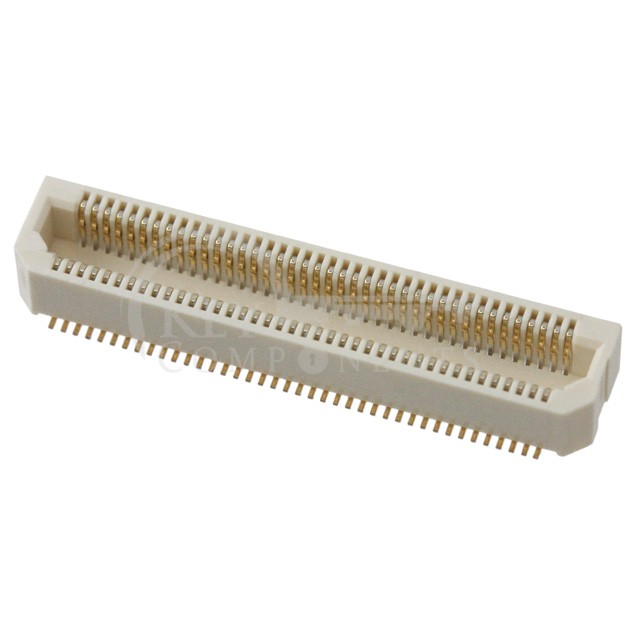

AXK5S80037YG

AXK5S80037YG

Manufacturer Part AXK5S80037YG
Manufacturer Panasonic Electric Works
Description CONN SOCKET 80POS SMD GOLD
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Connector Type:Socket, Center Strip Contacts
Number of Positions:80
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide
Contact Finish:Gold
Contact Finish Thickness:-
Mated Stacking Heights:4mm, 5mm, 6mm
Height Above Board:0.120" (3.05mm)
