AXK6S80637YG

AXK6S80637YG

Manufacturer Part AXK6S80637YG
Manufacturer Panasonic Electric Works

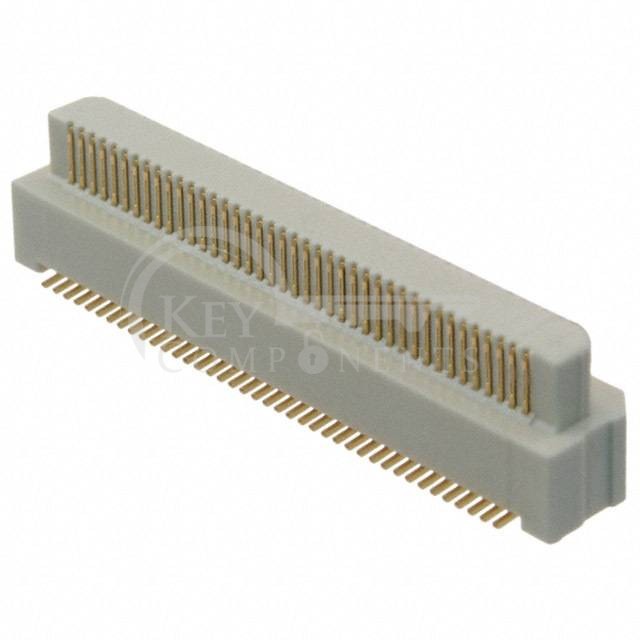

Description CONN HDR 80POS SMD GOLD
Category Connectors, Interconnects
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Connector Type:Header, Outer Shroud Contacts
Number of Positions:80
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide
Contact Finish:Gold
Contact Finish Thickness:-
Mated Stacking Heights:6mm, 6.5mm, 9mm
Height Above Board:0.209" (5.30mm)
