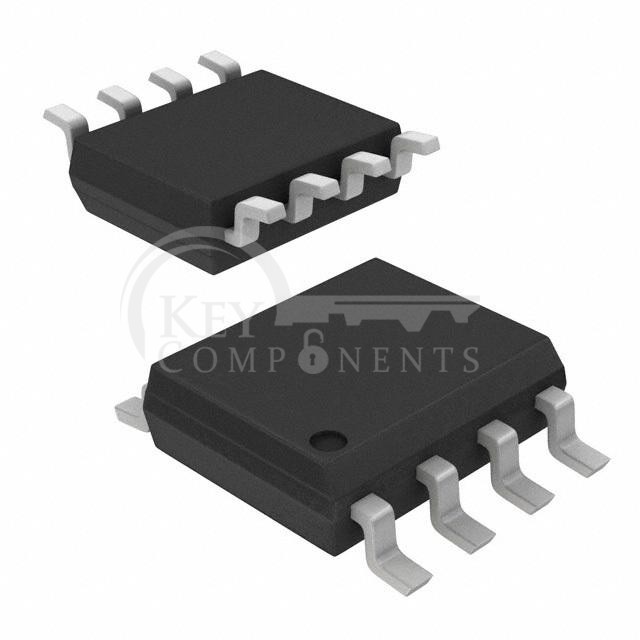

FAN7601BMX

FAN7601BMX

Manufacturer Part FAN7601BMX
Manufacturer onsemi
Description IC OFFLINE SWITCH FLYBACK 8SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Isolation:-
Internal Switch(s):Yes
Voltage - Breakdown:-
Topology:Flyback
Voltage - Start Up:12 V
Voltage - Supply (Vcc/Vdd):8V ~ 20V
Duty Cycle:95%
Frequency - Switching:Up to 300kHz
Power (Watts):-
Fault Protection:Over Temperature, Over Voltage
Control Features:Frequency Control, Soft Start
Operating Temperature:-40°C ~ 150°C (TJ)
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
Mounting Type:Surface Mount
