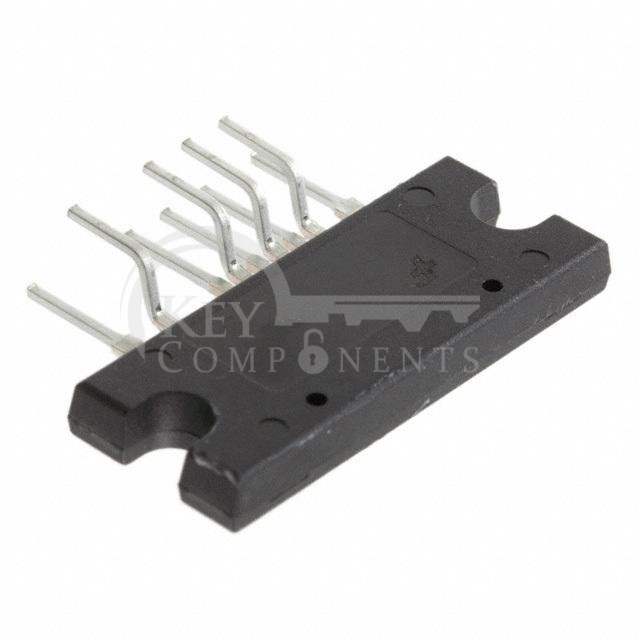

FSFR1800L
| Manufacturer Part | FSFR1800L |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC OFFLINE SW HALF-BRIDGE 9SIP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Output Isolation: | Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 500V |
| Topology: | Half-Bridge |
| Voltage - Start Up: | 14.5 V |
| Voltage - Supply (Vcc/Vdd): | 11.3V ~ 25V |
| Duty Cycle: | 50% |
| Frequency - Switching: | Up to 300kHz |
| Power (Watts): | 260 W |
| Fault Protection: | Current Limiting, Over Load, Over Temperature, Over Voltage |
| Control Features: | EN, Frequency Control |
| Operating Temperature: | -40°C ~ 130°C (TJ) |
| Package / Case: | 10-SIP Module, 9 Leads, Formed Leads |
| Supplier Device Package: | 9-SIP (L forming) |
| Mounting Type: | Through Hole |
