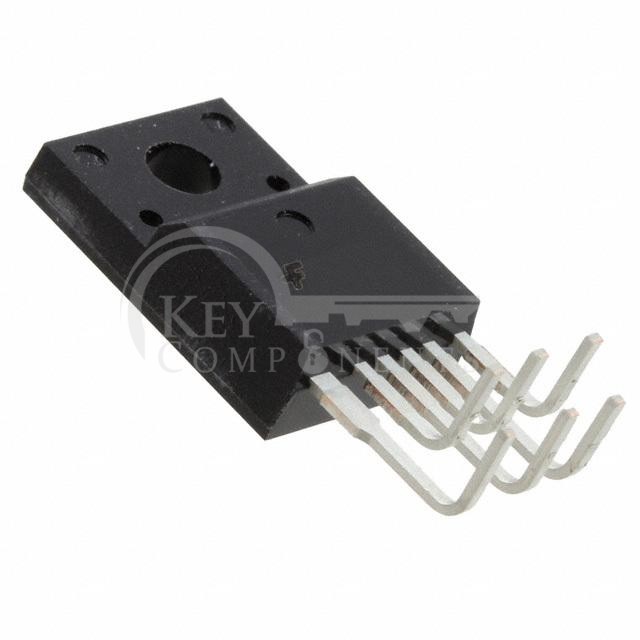

FSQ0765RSLDTU
| Manufacturer Part | FSQ0765RSLDTU |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC OFFLINE SW FLBACK TO220F-6L |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Output Isolation: | Isolated |
| Internal Switch(s): | Yes |
| Voltage - Breakdown: | 650V |
| Topology: | Flyback |
| Voltage - Start Up: | 12 V |
| Voltage - Supply (Vcc/Vdd): | 8V ~ 20V |
| Duty Cycle: | - |
| Frequency - Switching: | 48kHz ~ 67kHz |
| Power (Watts): | 90 W |
| Fault Protection: | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit |
| Control Features: | Sync |
| Operating Temperature: | -25°C ~ 85°C (TA) |
| Package / Case: | TO-220-6 Full Pack, Formed Leads |
| Supplier Device Package: | TO-220F-6L (L-Forming) |
| Mounting Type: | Through Hole |
