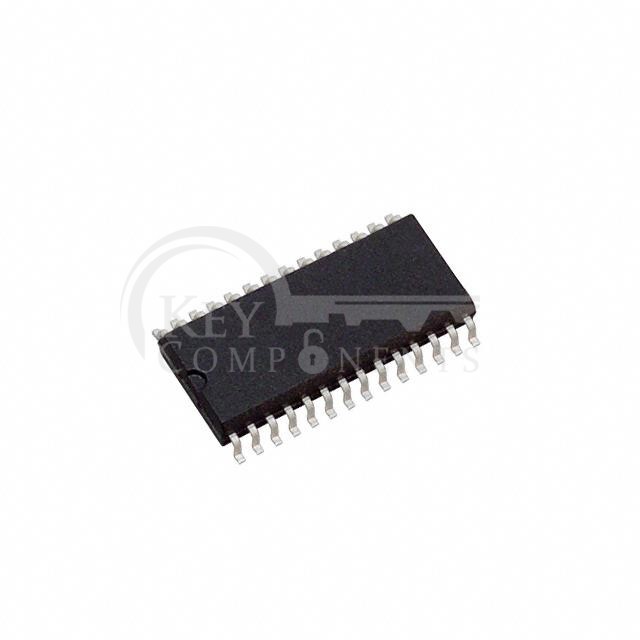

MPC506AU

MPC506AU

Manufacturer Part MPC506AU
Manufacturer Texas Instruments
Description IC MULTIPLEXER 1X16 28SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:-
Multiplexer/Demultiplexer Circuit:16:1
Number of Circuits:1
On-State Resistance (Max):1.5kOhm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±5V ~ 22V
Switch Time (Ton, Toff) (Max):200ns, 250ns (Typ)
-3db Bandwidth:-
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):5pF, 50pF
Current - Leakage (IS(off)) (Max):500pA (Typ)
Crosstalk:-
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:28-SOIC (0.295", 7.50mm Width)
Supplier Device Package:28-SOIC
