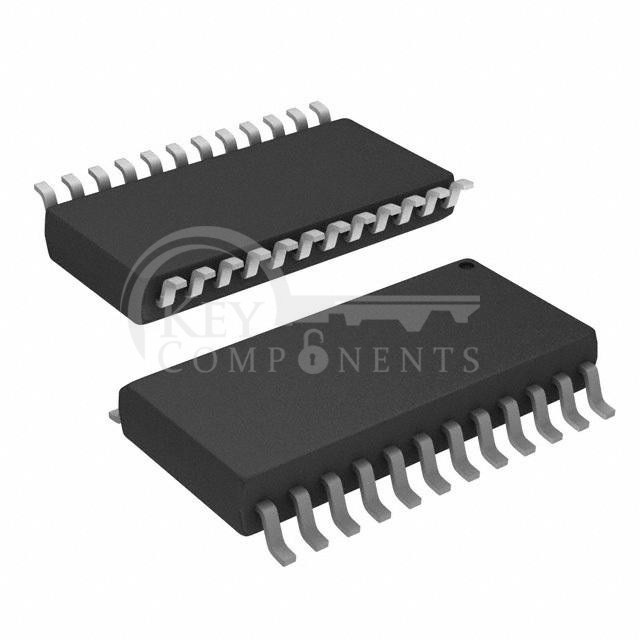

MC74HC4067ADWR2G

MC74HC4067ADWR2G

Manufacturer Part MC74HC4067ADWR2G
Manufacturer onsemi
Description IC MUX/DEMUX/QUAD SWITCH 24SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:16:1
Number of Circuits:1
On-State Resistance (Max):140Ohm
Channel-to-Channel Matching (ΔRon):8.5Ohm
Voltage - Supply, Single (V+):2V ~ 6V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):-
-3db Bandwidth:90MHz
Charge Injection:-
Channel Capacitance (CS(off), CD(off)):10pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-80dB @ 1MHz
Operating Temperature:-55°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:24-SOIC (0.295", 7.50mm Width)
Supplier Device Package:24-SOIC
