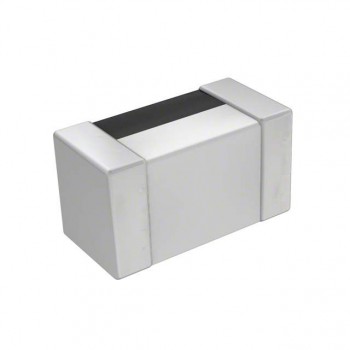

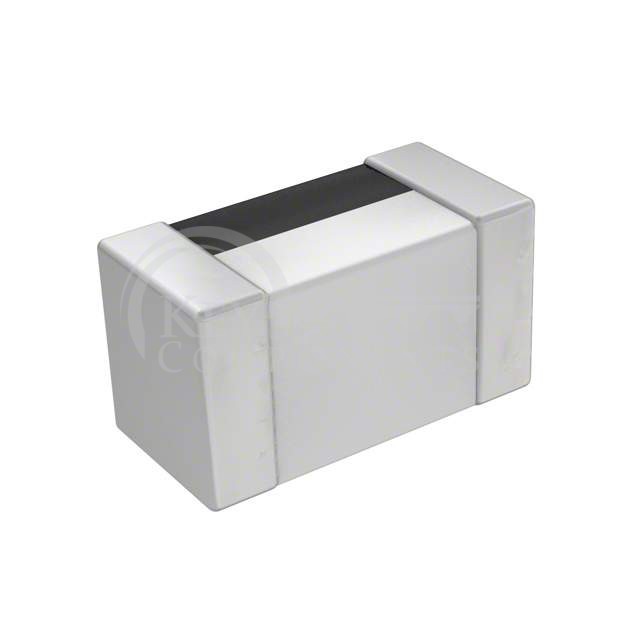

MLG0402Q15NJT000

MLG0402Q15NJT000

Manufacturer Part MLG0402Q15NJT000
Manufacturer TDK Corporation
Description FIXED IND 15NH 140MA 2.6 OHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Multilayer
Material - Core:Non-Magnetic
Inductance:15 nH
Tolerance:±5%
Current Rating (Amps):140 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):2.6Ohm Max
Q @ Freq:3 @ 100MHz
Frequency - Self Resonant:3GHz
Ratings:-
Operating Temperature:-55°C ~ 125°C
Inductance Frequency - Test:100 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:01005 (0402 Metric)
Supplier Device Package:01005 (0402 Metric)
Size / Dimension:0.016" L x 0.008" W (0.40mm x 0.20mm)
Height - Seated (Max):0.009" (0.22mm)
