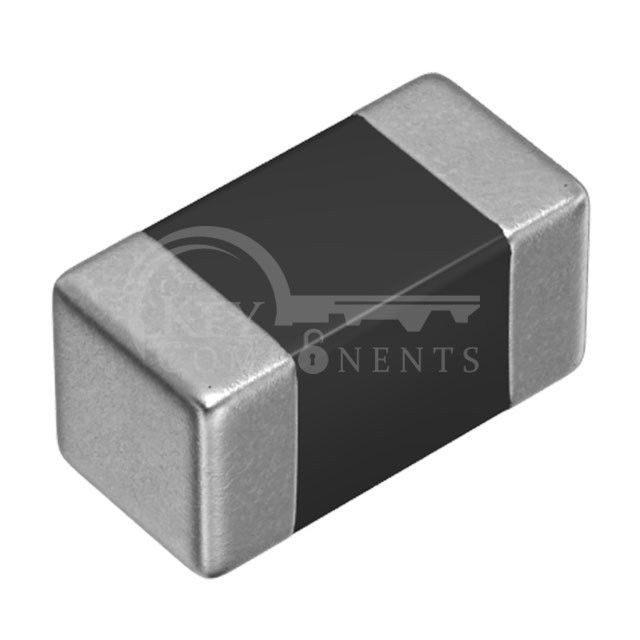

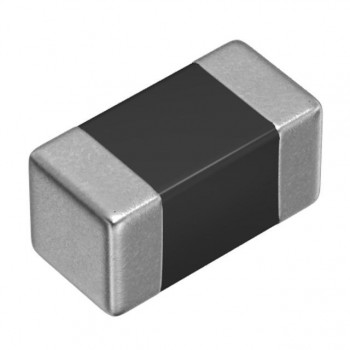

MLF1005VR18JT000

MLF1005VR18JT000

Manufacturer Part MLF1005VR18JT000
Manufacturer TDK Corporation
Description FIXED IND 180NH 160MA 720MOHM SM
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Multilayer
Material - Core:Ferrite
Inductance:180 nH
Tolerance:±5%
Current Rating (Amps):160 mA
Current - Saturation (Isat):-
Shielding:Shielded
DC Resistance (DCR):720mOhm Max
Q @ Freq:15 @ 25MHz
Frequency - Self Resonant:320MHz
Ratings:-
Operating Temperature:-40°C ~ 85°C
Inductance Frequency - Test:25 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0402 (1005 Metric)
Supplier Device Package:0402 (1005 Metric)
Size / Dimension:0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max):0.022" (0.55mm)
