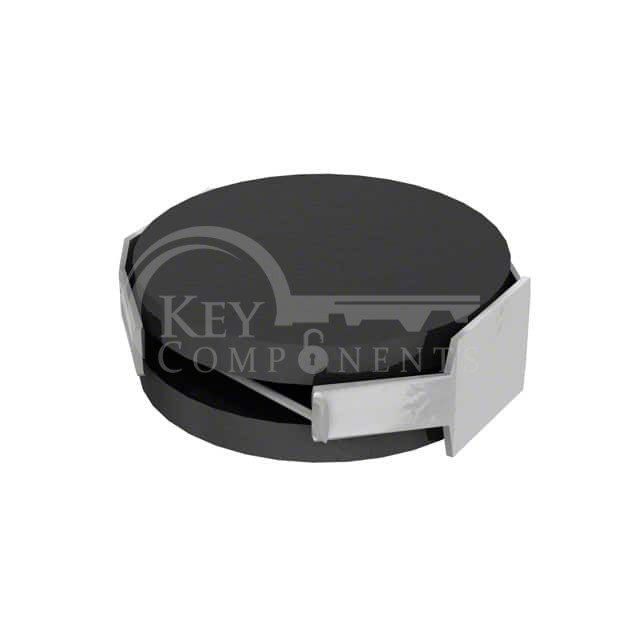

CDH2D09BNP-220MC
| Manufacturer Part | CDH2D09BNP-220MC |
|---|---|
| Manufacturer | Sumida America Components Inc. |
| Description | FIXED IND 22UH 340MA 1.313OHM SM |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | - |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±20% |
| Current Rating (Amps): | 340 mA |
| Current - Saturation (Isat): | 310mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 1.313Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | - |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 100 kHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | Nonstandard |
| Supplier Device Package: | - |
| Size / Dimension: | 0.112" L x 0.106" W (2.85mm x 2.70mm) |
| Height - Seated (Max): | 0.039" (1.00mm) |
