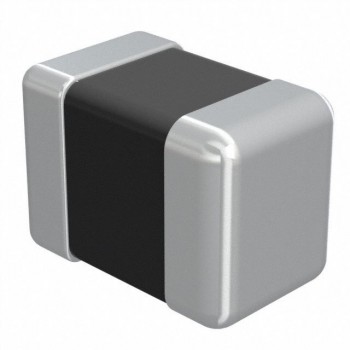

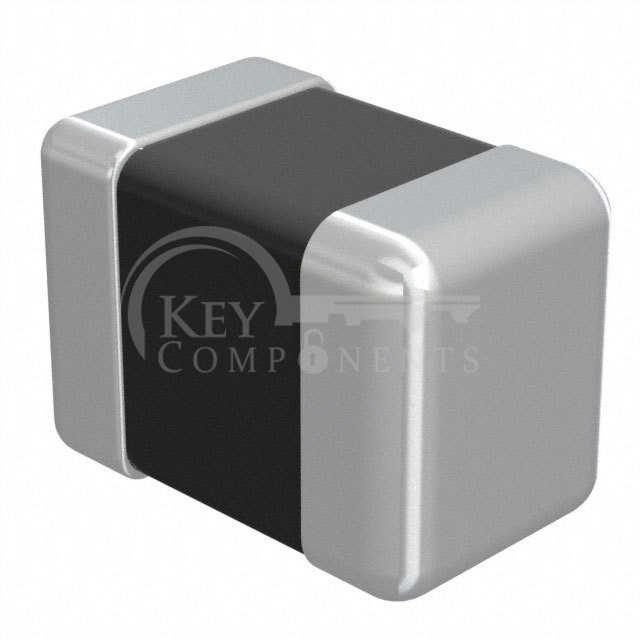

CB2012T220K
| Manufacturer Part | CB2012T220K |
|---|---|
| Manufacturer | Taiyo Yuden |
| Description | FIXED IND 22UH 280MA 2.21OHM SMD |
| Category | Inductors, Coils, Chokes |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Type: | Drum Core, Wirewound |
| Material - Core: | Ferrite |
| Inductance: | 22 µH |
| Tolerance: | ±10% |
| Current Rating (Amps): | 280 mA |
| Current - Saturation (Isat): | 135mA |
| Shielding: | Unshielded |
| DC Resistance (DCR): | 2.21Ohm Max |
| Q @ Freq: | - |
| Frequency - Self Resonant: | 16MHz |
| Ratings: | - |
| Operating Temperature: | -40°C ~ 105°C |
| Inductance Frequency - Test: | 2.52 MHz |
| Features: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 0805 (2012 Metric) |
| Supplier Device Package: | 0805 (2012 Metric) |
| Size / Dimension: | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Height - Seated (Max): | 0.057" (1.45mm) |
