SC1302CISTRT

SC1302CISTRT

Manufacturer Part SC1302CISTRT
Manufacturer Semtech Corporation
Description IC GATE DRVR LOW-SIDE 8SOIC
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Driven Configuration:Low-Side
Channel Type:Independent
Number of Drivers:2
Gate Type:N-Channel MOSFET
Voltage - Supply:4.5V ~ 16.5V
Logic Voltage - VIL, VIH:0.8V, 2V
Current - Peak Output (Source, Sink):2A, 2A
Input Type:Inverting, Non-Inverting
High Side Voltage - Max (Bootstrap):-
Rise / Fall Time (Typ):20ns, 20ns
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount

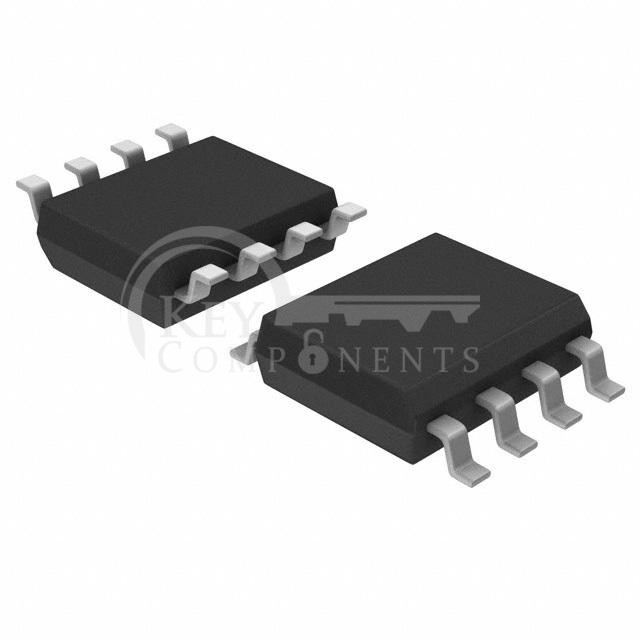

Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SOIC
