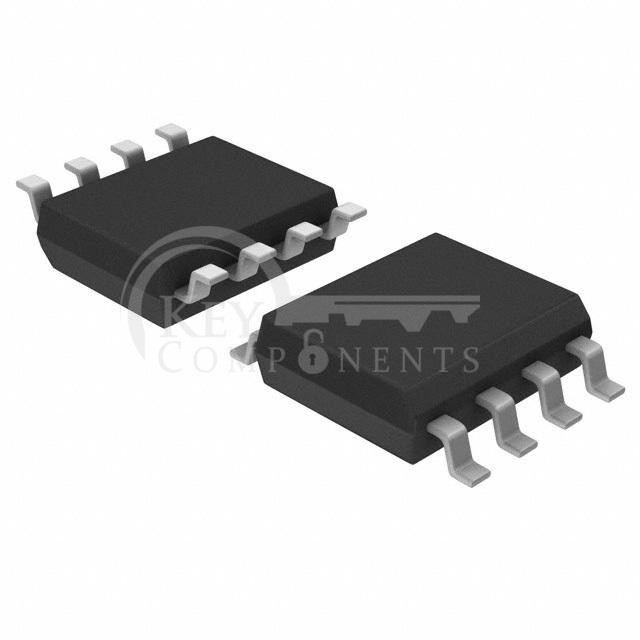

SC1205CSTRT

SC1205CSTRT

Manufacturer Part SC1205CSTRT
Manufacturer Semtech Corporation
Description IC GATE DRVR HALF-BRIDGE 8SO
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Driven Configuration:Half-Bridge
Channel Type:Synchronous
Number of Drivers:2
Gate Type:N-Channel MOSFET
Voltage - Supply:4.15V ~ 6V
Logic Voltage - VIL, VIH:0.8V, 2V
Current - Peak Output (Source, Sink):3A, 3A
Input Type:Non-Inverting
High Side Voltage - Max (Bootstrap):25 V
Rise / Fall Time (Typ):14ns, 12ns
Operating Temperature:0°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Package / Case:8-SOIC (0.154", 3.90mm Width)
Supplier Device Package:8-SO
