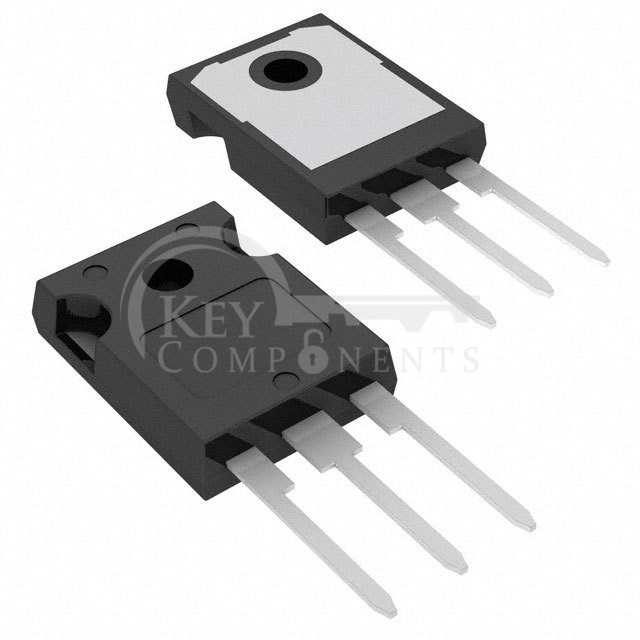

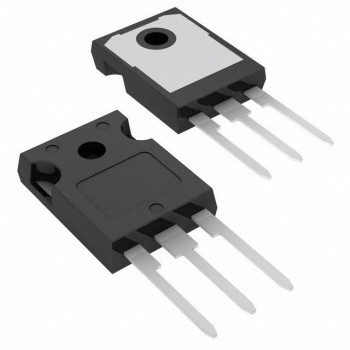

NGTB50N60FL2WG

NGTB50N60FL2WG

Manufacturer Part NGTB50N60FL2WG
Manufacturer onsemi
Description IGBT 600V 50A TO247
Category Discrete Semiconductor Products
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
IGBT Type:Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):600 V
Current - Collector (Ic) (Max):100 A
Current - Collector Pulsed (Icm):200 A
Vce(on) (Max) @ Vge, Ic:2V @ 15V, 50A
Power - Max:417 W
Switching Energy:1.5mJ (on), 460µJ (off)
Input Type:Standard
Gate Charge:220 nC
Td (on/off) @ 25°C:100ns/237ns
Test Condition:400V, 50A, 10Ohm, 15V
Reverse Recovery Time (trr):94 ns
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Package / Case:TO-247-3
Supplier Device Package:TO-247-3
