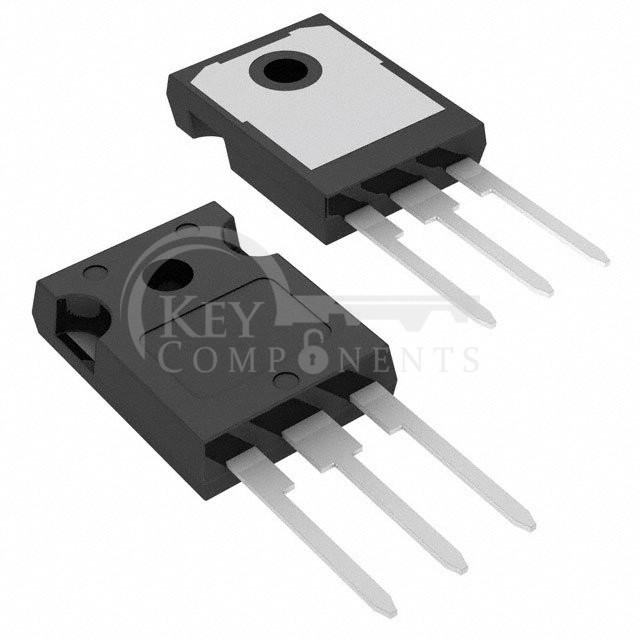

NGTB15N120FL2WG

Manufacturer Part	NGTB15N120FL2WG
Manufacturer	onsemi
Description	IGBT 1200V 15A SOLAR/UPS TO247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	Trench Field Stop
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	30 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 15A
Power - Max:	294 W
Switching Energy:	1.2mJ (on), 370µJ (off)
Input Type:	Standard
Gate Charge:	109 nC
Td (on/off) @ 25°C:	64ns/132ns
Test Condition:	600V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr):	110 ns
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247-3
