NGTB03N60R2DT4G

Manufacturer Part	NGTB03N60R2DT4G
Manufacturer	onsemi
Description	IGBT 9A 600V DPAK
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	9 A
Current - Collector Pulsed (Icm):	12 A
Vce(on) (Max) @ Vge, Ic:	2.1V @ 15V, 3A
Power - Max:	49 W
Switching Energy:	50µJ (on), 27µJ (off)
Input Type:	Standard
Gate Charge:	17 nC
Td (on/off) @ 25°C:	27ns/59ns
Test Condition:	300V, 3A, 30Ohm, 15V
Reverse Recovery Time (trr):	65 ns
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount

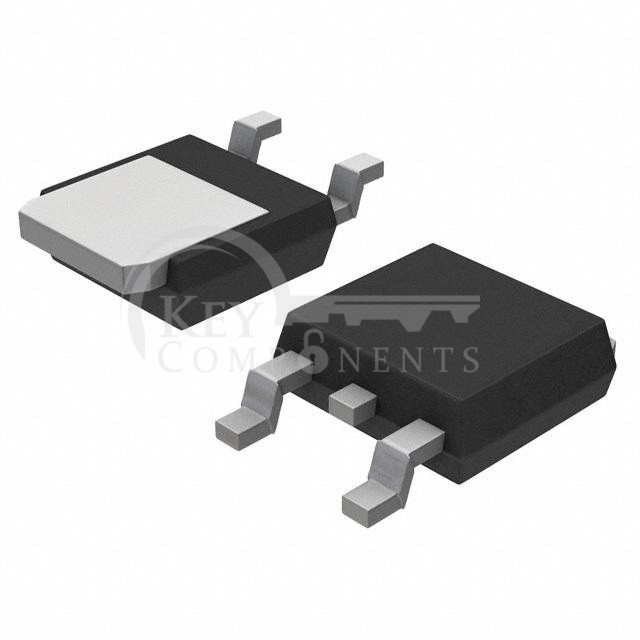

Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package:	DPAK
