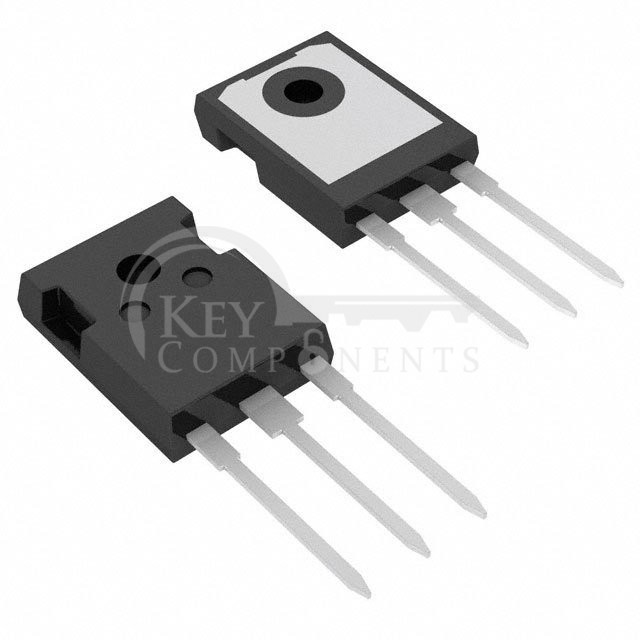

IXGH72N60A3

Manufacturer Part	IXGH72N60A3
Manufacturer	IXYS
Description	IGBT 600V 75A 540W TO247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	75 A
Current - Collector Pulsed (Icm):	400 A
Vce(on) (Max) @ Vge, Ic:	1.35V @ 15V, 60A
Power - Max:	540 W
Switching Energy:	1.38mJ (on), 3.5mJ (off)
Input Type:	Standard
Gate Charge:	230 nC
Td (on/off) @ 25°C:	31ns/320ns
Test Condition:	480V, 50A, 3Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
