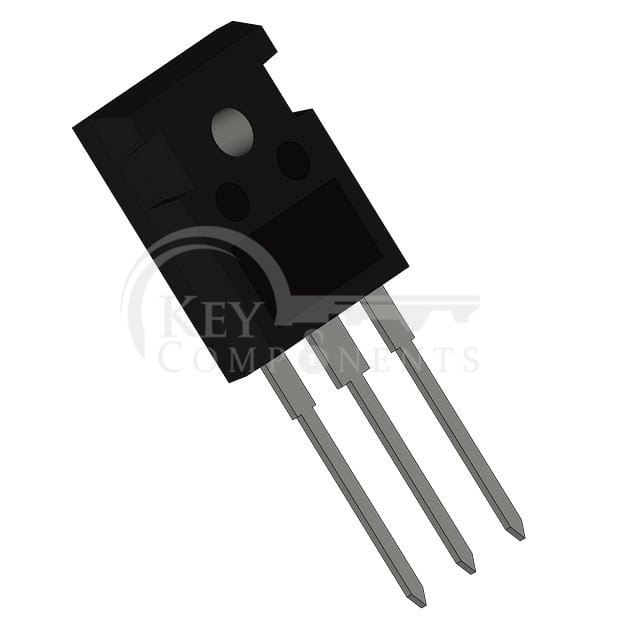

IRG7PH37K10DPBF

Manufacturer Part	IRG7PH37K10DPBF
Manufacturer	International Rectifier
Description	IGBT W/ULTRAFAST SOFT RECOVERY D
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Active
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1200 V
Current - Collector (Ic) (Max):	45 A
Current - Collector Pulsed (Icm):	60 A
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 15A
Power - Max:	216 W
Switching Energy:	1mJ (on), 600µJ (off)
Input Type:	Standard
Gate Charge:	135 nC
Td (on/off) @ 25°C:	50ns/240ns
Test Condition:	600V, 15A, 10Ohm, 15V
Reverse Recovery Time (trr):	120 ns
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AC
