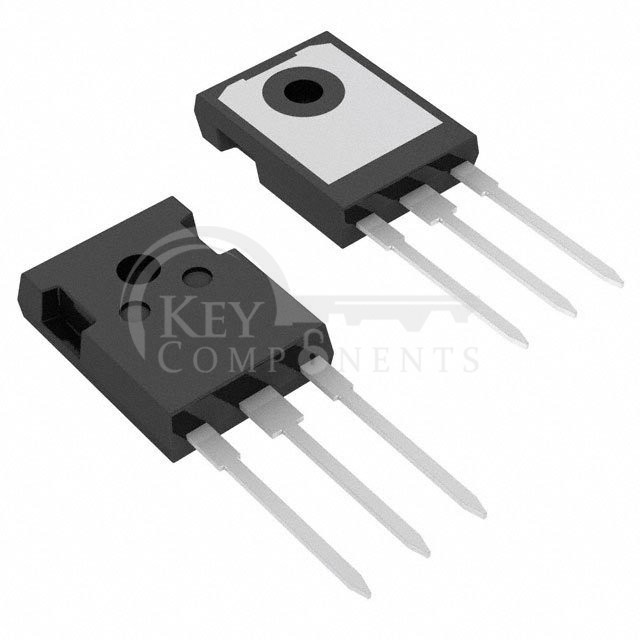

IXGH40N60A

Manufacturer Part	IXGH40N60A
Manufacturer	IXYS
Description	IGBT 600V 75A 250W TO247AD
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	75 A
Current - Collector Pulsed (Icm):	150 A
Vce(on) (Max) @ Vge, Ic:	3V @ 15V, 40A
Power - Max:	250 W
Switching Energy:	3mJ (off)
Input Type:	Standard
Gate Charge:	200 nC
Td (on/off) @ 25°C:	100ns/600ns
Test Condition:	480V, 40A, 22Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
