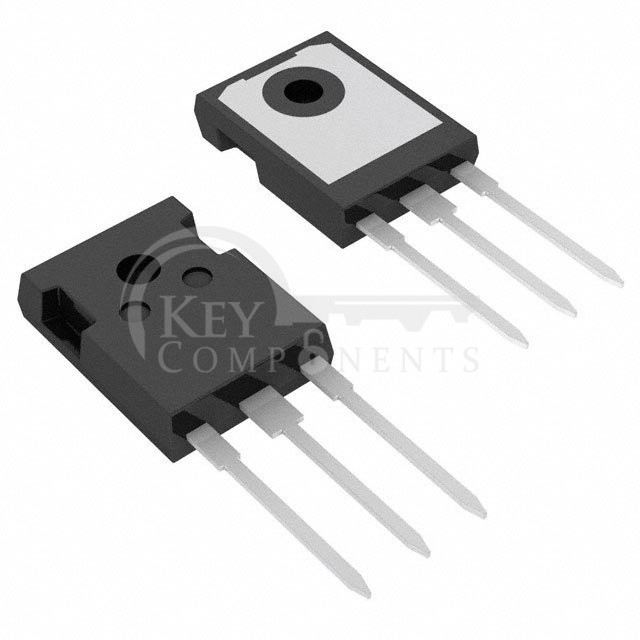

IXGH25N100A

Manufacturer Part	IXGH25N100A
Manufacturer	IXYS
Description	IGBT 1000V 50A 200W TO247AD
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	-
Voltage - Collector Emitter Breakdown (Max):	1000 V
Current - Collector (Ic) (Max):	50 A
Current - Collector Pulsed (Icm):	100 A
Vce(on) (Max) @ Vge, Ic:	4V @ 15V, 25A
Power - Max:	200 W
Switching Energy:	5mJ (off)
Input Type:	Standard
Gate Charge:	130 nC
Td (on/off) @ 25°C:	100ns/500ns
Test Condition:	800V, 25A, 33Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
