IXGH16N60B2D1

Manufacturer Part	IXGH16N60B2D1
Manufacturer	IXYS
Description	IGBT 600V 40A 150W TO247
Category	Discrete Semiconductor Products
RoHS	Lead free / RoHS Compliant
Warranty	365 days
Datasheet	-

Type	Description
Product Status:	Obsolete
IGBT Type:	PT
Voltage - Collector Emitter Breakdown (Max):	600 V
Current - Collector (Ic) (Max):	40 A
Current - Collector Pulsed (Icm):	100 A
Vce(on) (Max) @ Vge, Ic:	1.95V @ 15V, 12A
Power - Max:	150 W
Switching Energy:	160µJ (on), 120µJ (off)
Input Type:	Standard
Gate Charge:	24 nC
Td (on/off) @ 25°C:	18ns/73ns
Test Condition:	400V, 12A, 22Ohm, 15V
Reverse Recovery Time (trr):	30 ns
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole

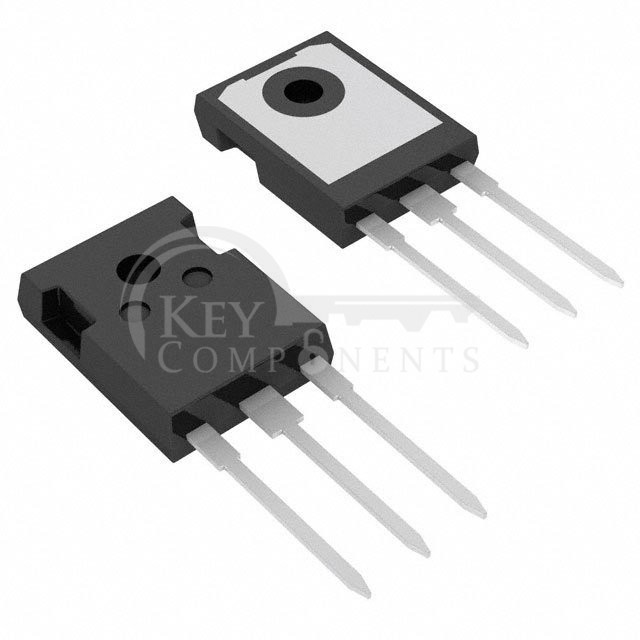

Package / Case:	TO-247-3
Supplier Device Package:	TO-247AD
