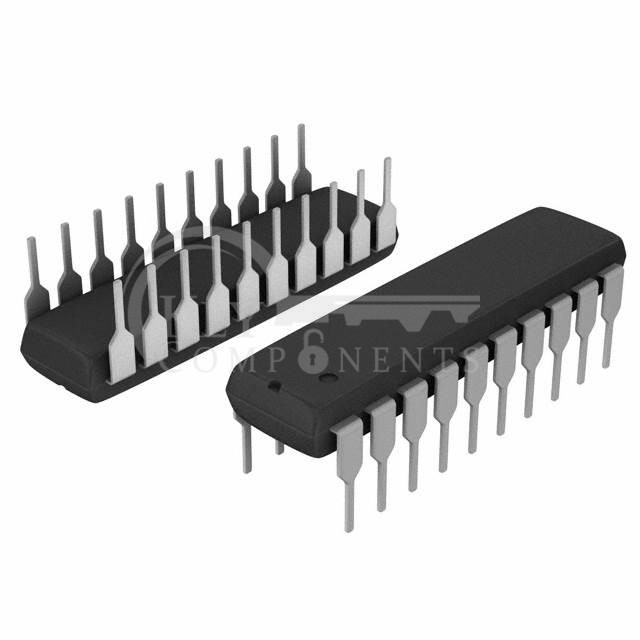

DM74ALS273N

DM74ALS273N

Manufacturer Part DM74ALS273N
Manufacturer Fairchild Semiconductor
Description IC FF D-TYPE SNGL 8BIT 20DIP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Obsolete
Function:Master Reset
Type:D-Type
Output Type:Non-Inverted
Number of Elements:1
Number of Bits per Element:8
Clock Frequency:35 MHz
Max Propagation Delay @ V, Max CL:15ns @ 5V, 50pF
Trigger Type:Positive Edge
Current - Output High, Low:2.6mA, 24mA
Voltage - Supply:4.5V ~ 5.5V
Current - Quiescent (Iq):20 mA
Input Capacitance:-
Operating Temperature:0°C ~ 70°C (TA)
Mounting Type:Through Hole
Supplier Device Package:20-PDIP
Package / Case:20-DIP (0.300", 7.62mm)
