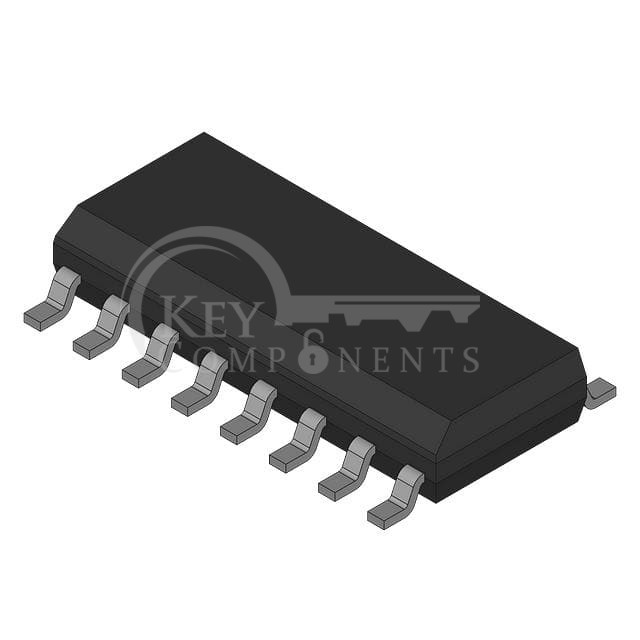

DM74ALS109AMX
| Manufacturer Part | DM74ALS109AMX |
|---|---|
| Manufacturer | Fairchild Semiconductor |
| Description | IC FF JK TYPE DUAL 1BIT 16SOIC |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Obsolete |
| Function: | Set(Preset) and Reset |
| Type: | JK Type |
| Output Type: | Complementary |
| Number of Elements: | 2 |
| Number of Bits per Element: | 1 |
| Clock Frequency: | 34 MHz |
| Max Propagation Delay @ V, Max CL: | 18ns @ 5V, 50pF |
| Trigger Type: | Positive Edge |
| Current - Output High, Low: | 400µA, 8mA |
| Voltage - Supply: | 4.5V ~ 5.5V |
| Current - Quiescent (Iq): | 4 mA |
| Input Capacitance: | - |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 16-SOIC |
| Package / Case: | 16-SOIC (0.154", 3.90mm Width) |
