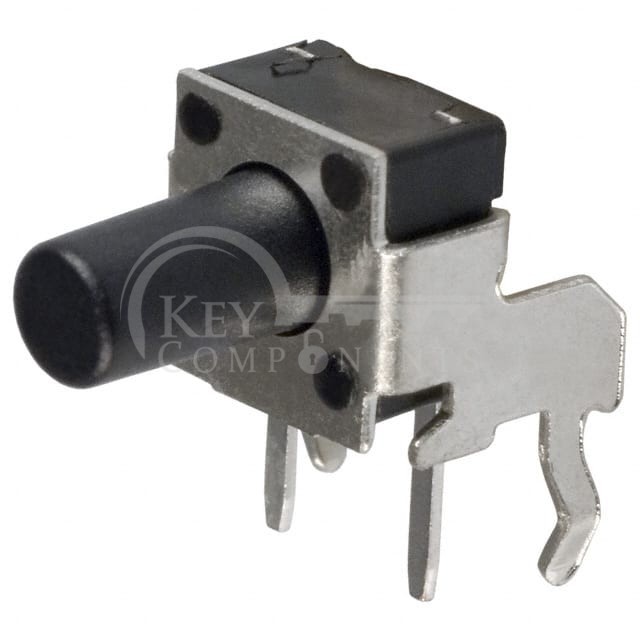

TL1105SF160Q

TL1105SF160Q

Manufacturer Part TL1105SF160Q
Manufacturer E-Switch
Description SWITCH TACTILE SPST-NO 0.05A 12V
Category Switches
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Circuit:SPST-NO
Switch Function:Off-Mom
Contact Rating @ Voltage:0.05A @ 12VDC
Actuator Type:Standard
Mounting Type:Through Hole, Right Angle
Actuator Height off PCB, Vertical:-
Actuator Length, Right Angle:8.35mm
Actuator Orientation:Side Actuated
Termination Style:PC Pin
Outline:7.10mm x 6.55mm
Illumination:Non-Illuminated
Illumination Type, Color:-
Illumination Voltage (Nominal):-
Operating Force:160gf
Ingress Protection:-
Features:-
Operating Temperature:-20°C ~ 70°C
