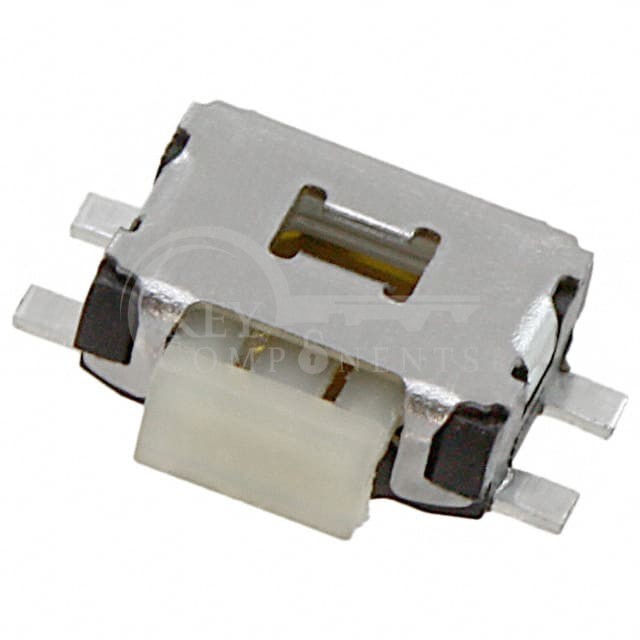

Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Circuit: | SPST-NO |
| Switch Function: | Off-Mom |
| Contact Rating @ Voltage: | 0.05A @ 12VDC |
| Actuator Type: | Rectangular Button |
| Mounting Type: | Surface Mount, Right Angle |
| Actuator Height off PCB, Vertical: | - |
| Actuator Length, Right Angle: | - |
| Actuator Orientation: | Side Actuated |
| Termination Style: | Gull Wing |
| Outline: | 6.40mm x 3.50mm |
| Illumination: | Non-Illuminated |
| Illumination Type, Color: | - |
| Illumination Voltage (Nominal): | - |
| Operating Force: | 160gf |
| Ingress Protection: | - |
| Features: | Board Guide |
| Operating Temperature: | -20°C ~ 70°C |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
