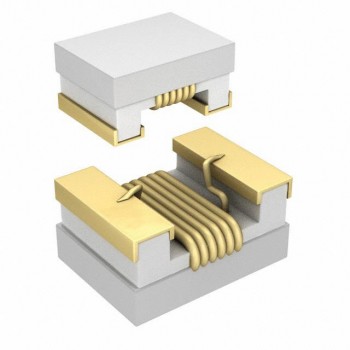

744761156C

744761156C

Manufacturer Part 744761156C
Manufacturer Würth Elektronik
Description FIXED IND 56NH 600MA 250MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ceramic
Inductance:56 nH
Tolerance:±5%
Current Rating (Amps):600 mA
Current - Saturation (Isat):-
Shielding:Unshielded
DC Resistance (DCR):250mOhm Max
Q @ Freq:32 @ 200MHz
Frequency - Self Resonant:1.9GHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:200 MHz
Features:-
Mounting Type:Surface Mount
Package / Case:0603 (1608 Metric)
Supplier Device Package:0603 (1608 Metric)
Size / Dimension:0.065" L x 0.045" W (1.65mm x 1.15mm)
Height - Seated (Max):0.043" (1.10mm)
