7445101

7445101

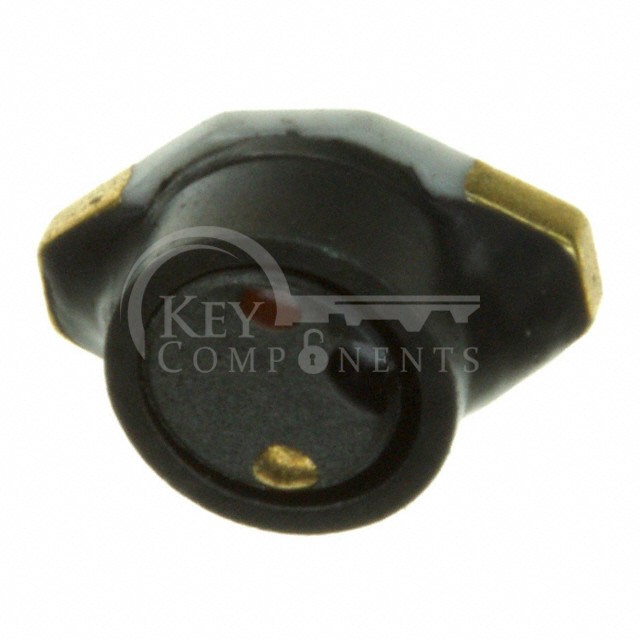

Manufacturer Part 7445101
Manufacturer Würth Elektronik
Description FIXED IND 1UH 3A 40 MOHM SMD
Category Inductors, Coils, Chokes
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Type:Drum Core, Wirewound
Material - Core:Ferrite
Inductance:1 µH
Tolerance:±20%
Current Rating (Amps):3 A
Current - Saturation (Isat):1.62A
Shielding:Shielded
DC Resistance (DCR):40mOhm Max
Q @ Freq:-
Frequency - Self Resonant:83MHz
Ratings:-
Operating Temperature:-40°C ~ 125°C
Inductance Frequency - Test:100 kHz
Features:-
Mounting Type:Surface Mount
Package / Case:Nonstandard
Supplier Device Package:-
Size / Dimension:0.500" L x 0.406" W (12.70mm x 10.30mm)
Height - Seated (Max):0.118" (3.00mm)
