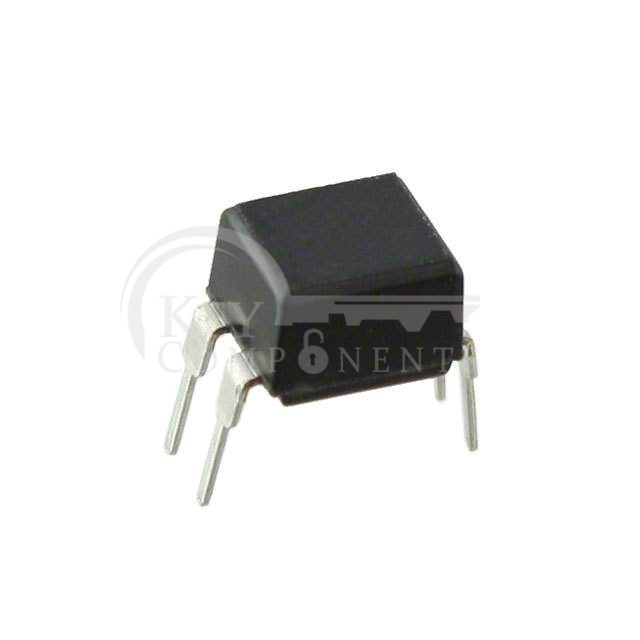

SFH618A-2
| Manufacturer Part | SFH618A-2 |
|---|---|
| Manufacturer | Vishay Semiconductor Opto Division |
| Description | OPTOISOLATOR 5.3KV TRANS 4-DIP |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 5300Vrms |
| Current Transfer Ratio (Min): | 63% @ 1mA |
| Current Transfer Ratio (Max): | 125% @ 1mA |
| Turn On / Turn Off Time (Typ): | 6µs, 5.5µs |
| Rise / Fall Time (Typ): | 3.5µs, 5µs |
| Input Type: | DC |
| Output Type: | Transistor |
| Voltage - Output (Max): | 55V |
| Current - Output / Channel: | 50mA |
| Voltage - Forward (Vf) (Typ): | 1.1V |
| Current - DC Forward (If) (Max): | 60 mA |
| Vce Saturation (Max): | 400mV |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Through Hole |
| Package / Case: | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package: | 4-DIP |
