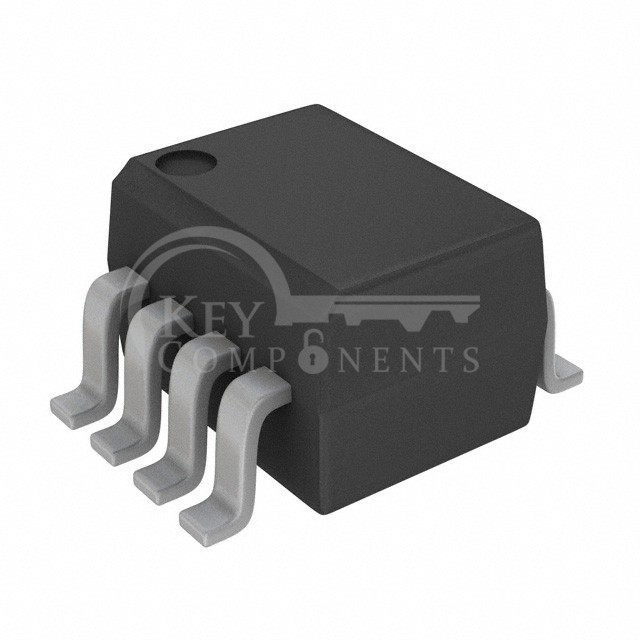

IL215AT
| Manufacturer Part | IL215AT |
|---|---|
| Manufacturer | Vishay Semiconductor Opto Division |
| Description | OPTOISO 4KV TRANS W/BASE 8SOIC |
| Category | Isolators |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Number of Channels: | 1 |
| Voltage - Isolation: | 4000Vrms |
| Current Transfer Ratio (Min): | 20% @ 1mA |
| Current Transfer Ratio (Max): | - |
| Turn On / Turn Off Time (Typ): | 3µs, 3µs |
| Rise / Fall Time (Typ): | - |
| Input Type: | DC |
| Output Type: | Transistor with Base |
| Voltage - Output (Max): | 30V |
| Current - Output / Channel: | - |
| Voltage - Forward (Vf) (Typ): | 1V |
| Current - DC Forward (If) (Max): | 60 mA |
| Vce Saturation (Max): | 400mV |
| Operating Temperature: | -55°C ~ 100°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
