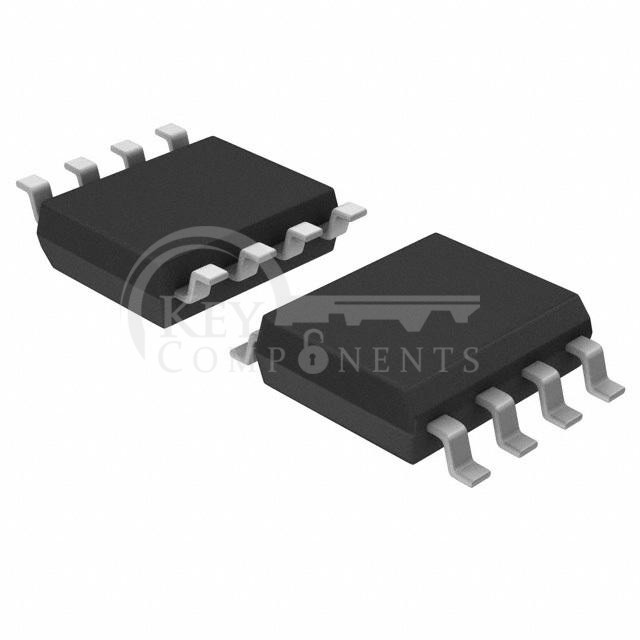

ORNTA5000AT1
| Manufacturer Part | ORNTA5000AT1 |
|---|---|
| Manufacturer | Vishay Dale Thin Film |
| Description | RES ARRAY 4 RES 500 OHM 8SOIC |
| Category | Resistors |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Circuit Type: | Isolated |
| Resistance (Ohms): | 500 |
| Tolerance: | ±0.1% |
| Number of Resistors: | 4 |
| Resistor Matching Ratio: | ±0.05% |
| Resistor-Ratio-Drift: | ±5ppm/°C |
| Number of Pins: | 8 |
| Power Per Element: | 100mW |
| Temperature Coefficient: | ±25ppm/°C |
| Operating Temperature: | -55°C ~ 125°C |
| Applications: | - |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | - |
| Size / Dimension: | 0.194" L x 0.157" W (4.93mm x 3.99mm) |
| Height - Seated (Max): | 0.068" (1.73mm) |
Shipping
| Shipping Type | Ship Fee | Lead Time |
| DHL | $20.00-$40.00 (0.50 KG) | 2-5 days |
| Fedex | $20.00-$40.00 (0.50 KG) | 2-5 days |
| UPS | $20.00-$40.00 (0.50 KG) | 2-5 days |
| TNT | $20.00-$40.00 (0.50 KG) | 2-6 days |
| EMS | $20.00-$40.00 (0.50 KG) | 3-7 days |
| REGISTERED AIR MAIL | $2.5-$7 (0.50 KG) | 20-35 days |
Payment
| Payment method | Hand Fee |
| Telegraphic Transfer | charge US$30.00 banking fee. |
| Paypal | charge 4.0% service fee. |
| Credit Card | charge 4% service fee. |
| Western Union | charge US$0.00 banking fee. |
| Money Gram | charge US$0.00 banking fee. |
Guarantees
- We provide 90 days warranty;
- The Pre-Shipment Inspection (PSI) will be applied;
- If some of the items you received aren't of perfect quality, we would responsibly arrange your refund or replacement. But the items must remain their original condition;
- If you don't receive the item in 25 days, just let us know, a new package or replacement will be issued.
- If your item is significantly different from our product description, you can A: Return it and get a full refund, or B: Get a partial refund and keep the item.
- Taxes & VAT will not be included;
