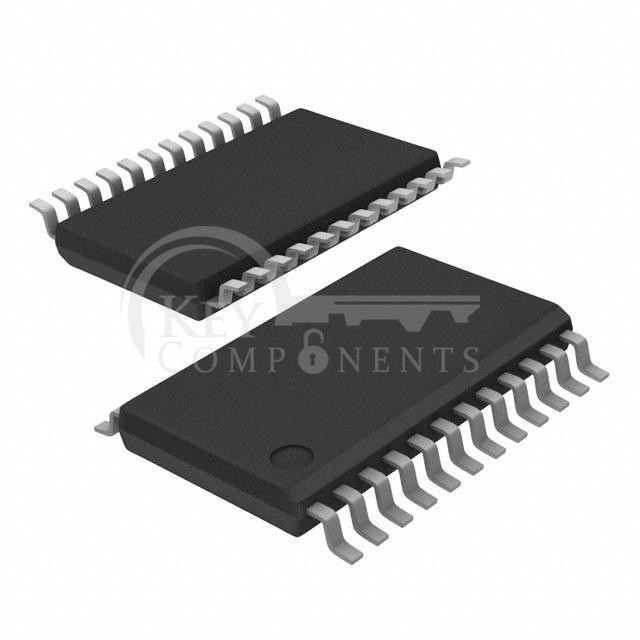

TS5V522CPWR
| Manufacturer Part | TS5V522CPWR |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC VGA SWITCH 5BIT 24TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Applications: | Video |
| Multiplexer/Demultiplexer Circuit: | - |
| Switch Circuit: | - |
| Number of Channels: | - |
| On-State Resistance (Max): | 10Ohm |
| Voltage - Supply, Single (V+): | 4V ~ 5.5V |
| Voltage - Supply, Dual (V±): | - |
| -3db Bandwidth: | 380MHz |
| Features: | Bi-Directional, RGB |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | 24-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 24-TSSOP |
