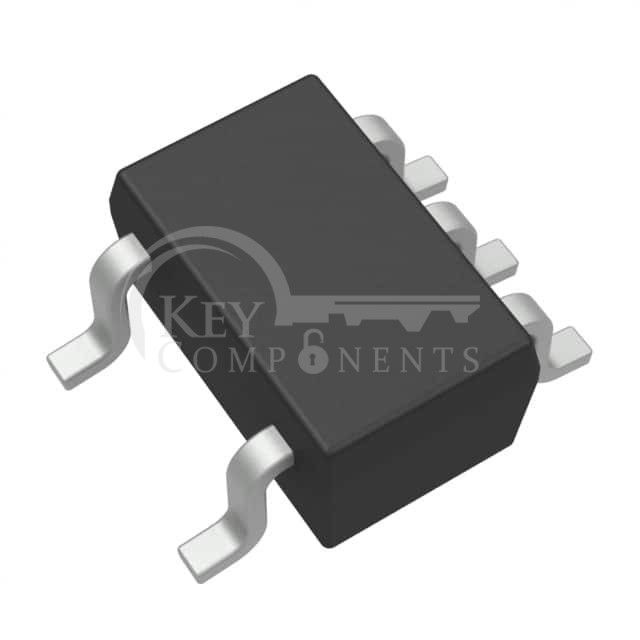

TS5A3166QDCKRQ1

TS5A3166QDCKRQ1

Manufacturer Part TS5A3166QDCKRQ1
Manufacturer Texas Instruments
Description IC SWITCH SPST SINGLE SC70-5
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SPST - NO
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:1
On-State Resistance (Max):900mOhm
Channel-to-Channel Matching (ΔRon):-
Voltage - Supply, Single (V+):1.65V ~ 5.5V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):7ns, 11.5ns
-3db Bandwidth:200MHz
Charge Injection:1pC
Channel Capacitance (CS(off), CD(off)):19pF, 18pF
Current - Leakage (IS(off)) (Max):80nA
Crosstalk:-
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:5-TSSOP, SC-70-5, SOT-353
Supplier Device Package:SC-70-5
