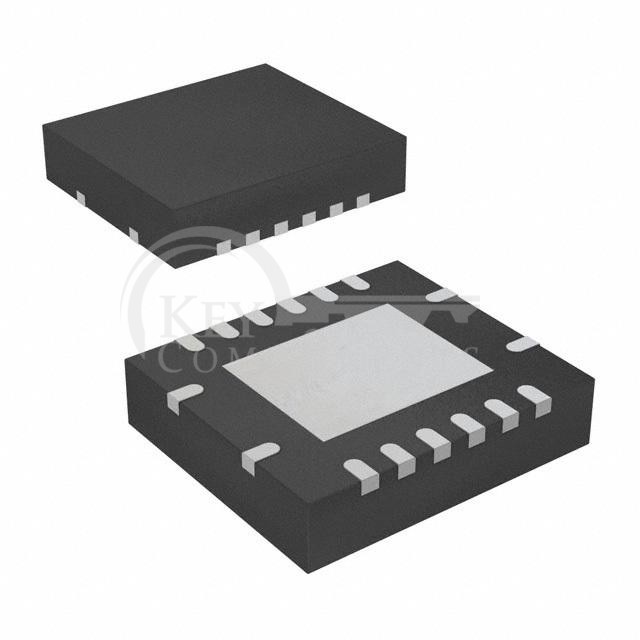

TS3A5017RGYR

TS3A5017RGYR

Manufacturer Part TS3A5017RGYR
Manufacturer Texas Instruments
Description IC SWITCH QUAD SP4T 16VQFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SP4T
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):12Ohm
Channel-to-Channel Matching (ΔRon):1Ohm
Voltage - Supply, Single (V+):2.3V ~ 3.6V
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):9.5ns, 3.5ns
-3db Bandwidth:165MHz
Charge Injection:5pC
Channel Capacitance (CS(off), CD(off)):4.5pF, 19pF
Current - Leakage (IS(off)) (Max):100nA
Crosstalk:-49dB @ 1MHz
Operating Temperature:-40°C ~ 85°C (TA)
Mounting Type:Surface Mount
Package / Case:16-VFQFN Exposed Pad
Supplier Device Package:16-VQFN (4x3.5)
