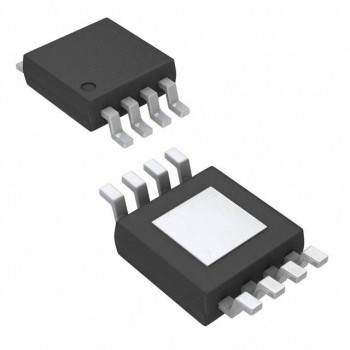

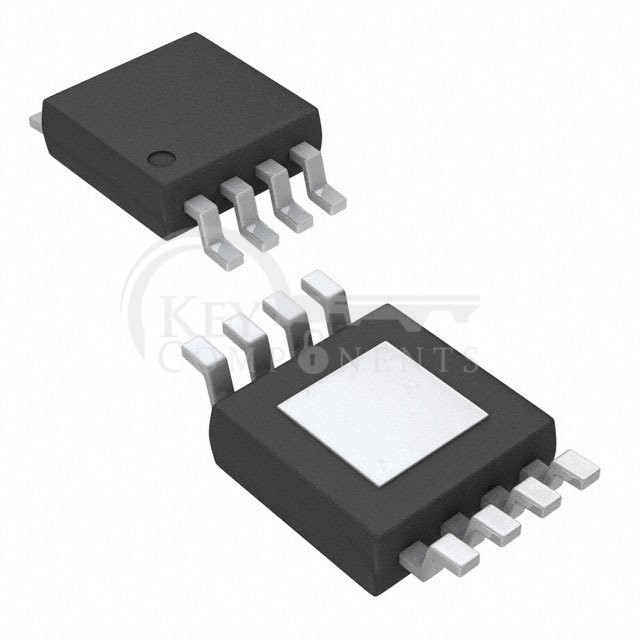

TPS7A1601DGNR

TPS7A1601DGNR

Manufacturer Part TPS7A1601DGNR
Manufacturer Texas Instruments
Description IC REG LIN POS ADJ 100MA 8HVSSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Output Configuration:Positive
Output Type:Adjustable
Number of Regulators:1
Voltage - Input (Max):60V
Voltage - Output (Min/Fixed):1.2V
Voltage - Output (Max):18.5V
Voltage Dropout (Max):0.5V @ 100mA
Current - Output:100mA
Current - Quiescent (Iq):15 µA
Current - Supply (Max):-
PSRR:50dB (100Hz)
Control Features:Enable, Power Good
Protection Features:Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
Supplier Device Package:8-HVSSOP
