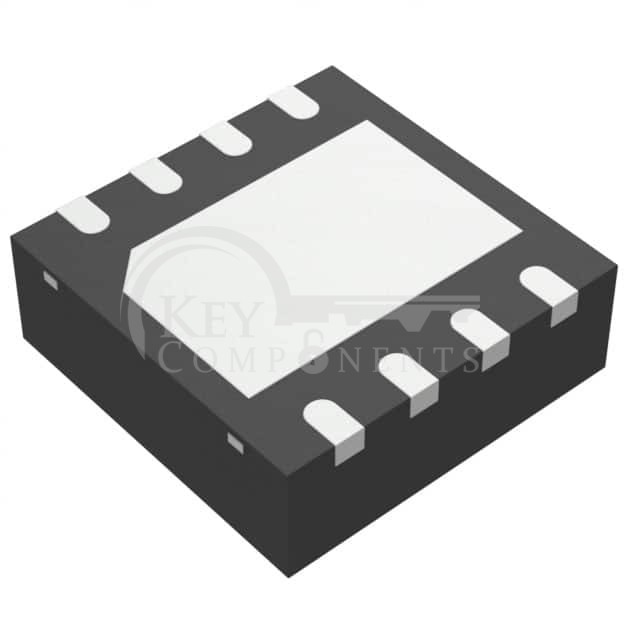

TPS2556DRBR

TPS2556DRBR

Manufacturer Part TPS2556DRBR
Manufacturer Texas Instruments
Description IC PWR SWITCH N-CHAN 1:1 8SON
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Type:General Purpose
Number of Outputs:1
Ratio - Input:Output:1:1
Output Configuration:High Side
Output Type:N-Channel
Interface:On/Off
Voltage - Load:2.5V ~ 6.5V
Voltage - Supply (Vcc/Vdd):Not Required
Current - Output (Max):500mA
Rds On (Typ):22mOhm
Input Type:Non-Inverting
Features:Slew Rate Controlled, Status Flag
Fault Protection:Current Limiting (Adjustable), Over Temperature, UVLO
Operating Temperature:-40°C ~ 125°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-SON (3x3)
Package / Case:8-VDFN Exposed Pad
