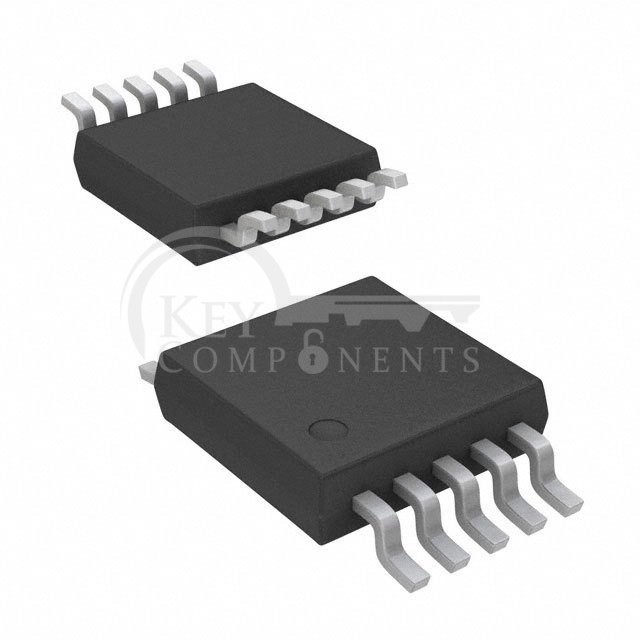

TMUX6123DGSR

TMUX6123DGSR

Manufacturer Part TMUX6123DGSR
Manufacturer Texas Instruments
Description IC SWITCH SPST DUAL 10VSSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:SPST
Multiplexer/Demultiplexer Circuit:1:1
Number of Circuits:2
On-State Resistance (Max):165Ohm
Channel-to-Channel Matching (ΔRon):2.4Ohm
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):±5V ~ 16.5V
Switch Time (Ton, Toff) (Max):86ns, 76ns
-3db Bandwidth:630MHz
Charge Injection:0.51pC
Channel Capacitance (CS(off), CD(off)):1.9pF, 2.2pF
Current - Leakage (IS(off)) (Max):20pA
Crosstalk:-110dB @ 1MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package:10-VSSOP
