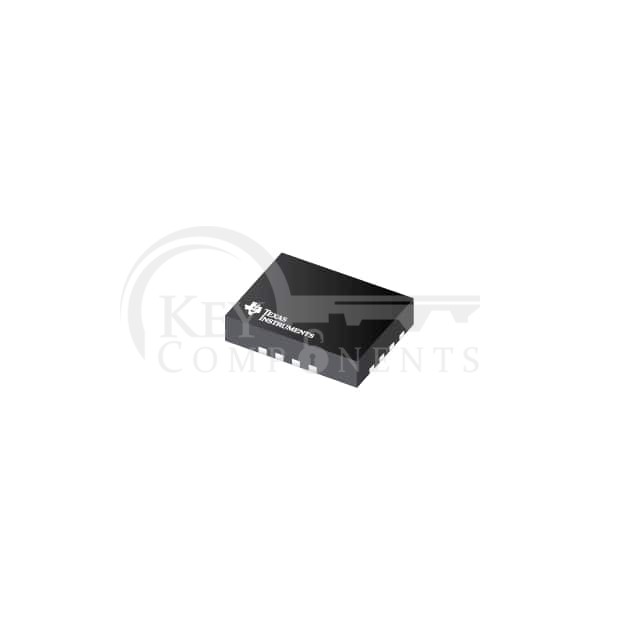

TMUX1209RSVR

TMUX1209RSVR

Manufacturer Part TMUX1209RSVR
Manufacturer Texas Instruments
Description IC SWITCH DUAL 16UQFN
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Switch Circuit:-
Multiplexer/Demultiplexer Circuit:4:1
Number of Circuits:2
On-State Resistance (Max):5Ohm (Typ)
Channel-to-Channel Matching (ΔRon):150mOhm
Voltage - Supply, Single (V+):-
Voltage - Supply, Dual (V±):-
Switch Time (Ton, Toff) (Max):14ns, 5ns (Typ)
-3db Bandwidth:125MHz
Charge Injection:9pC
Channel Capacitance (CS(off), CD(off)):13pF, 38pF
Current - Leakage (IS(off)) (Max):75nA (Typ)
Crosstalk:-62dB ~ -42dB @ 1MHz ~ 10MHz
Operating Temperature:-40°C ~ 125°C (TA)
Mounting Type:Surface Mount
Package / Case:16-UFQFN
Supplier Device Package:16-UQFN (2.6x1.8)
