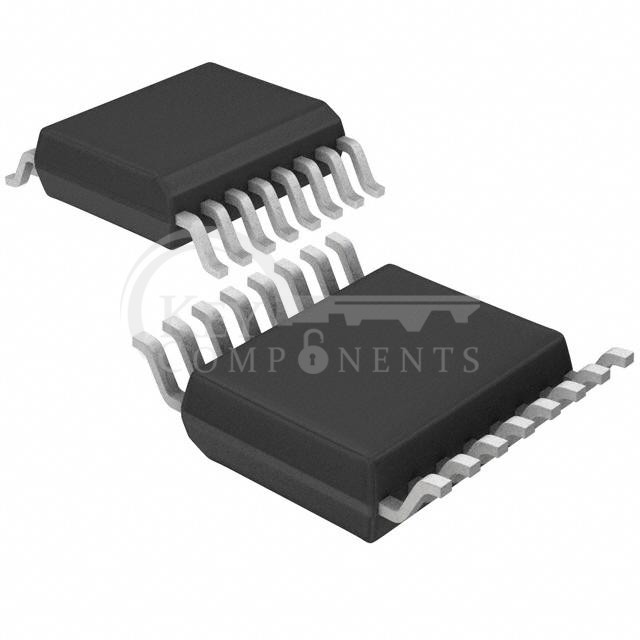

PCA9534ADBR

PCA9534ADBR

Manufacturer Part PCA9534ADBR
Manufacturer Texas Instruments
Description IC I/O EXPANDER I2C 8B 16SSOP
Category Integrated Circuits (ICs)
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Number of I/O:8
Interface:I²C, SMBus
Interrupt Output:Yes
Features:POR
Output Type:Push-Pull
Current - Output Source/Sink:10mA, 25mA
Clock Frequency:400 kHz
Voltage - Supply:2.3V ~ 5.5V
Operating Temperature:-40°C ~ 85°C
Mounting Type:Surface Mount
Package / Case:16-SSOP (0.209", 5.30mm Width)
Supplier Device Package:16-SSOP
