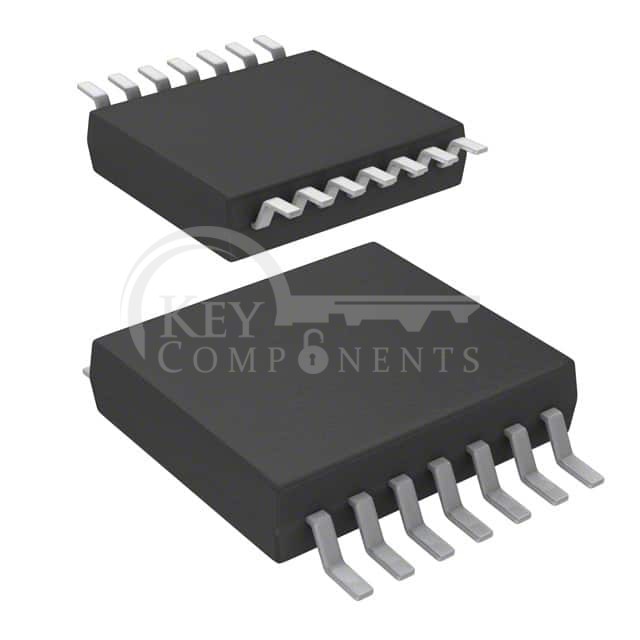

OPA4684IPWT
| Manufacturer Part | OPA4684IPWT |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC OPAMP CFA 4 CIRCUIT 14TSSOP |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Amplifier Type: | Current Feedback |
| Number of Circuits: | 4 |
| Output Type: | - |
| Slew Rate: | 780V/µs |
| Gain Bandwidth Product: | 120 MHz |
| -3db Bandwidth: | 95 MHz |
| Current - Input Bias: | 5 µA |
| Voltage - Input Offset: | 1.5 mV |
| Current - Supply: | 1.7mA (x4 Channels) |
| Current - Output / Channel: | 160 mA |
| Voltage - Supply Span (Min): | 2.8 V |
| Voltage - Supply Span (Max): | 12 V |
| Operating Temperature: | -40°C ~ 85°C |
| Mounting Type: | Surface Mount |
| Package / Case: | 14-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package: | 14-TSSOP |
