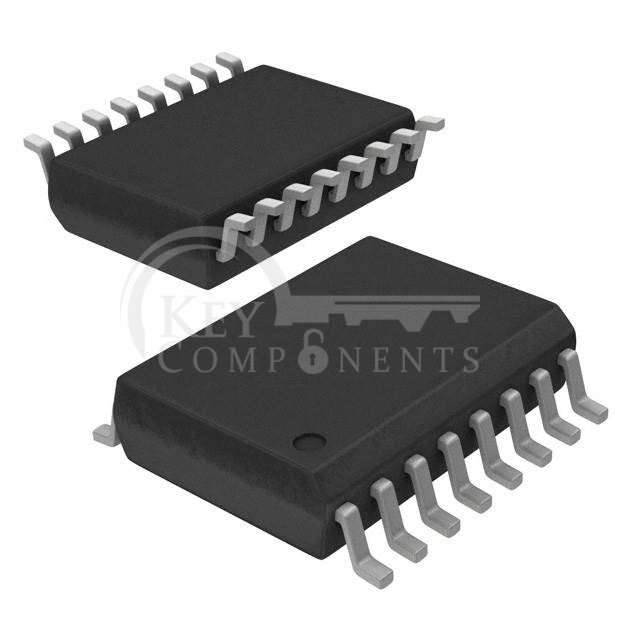

ISO7230MDWR

ISO7230MDWR

Manufacturer Part ISO7230MDWR
Manufacturer Texas Instruments
Description DGTL ISO 2500VRMS 3CH GP 16SOIC
Category Isolators
RoHS Lead free / RoHS Compliant
Warranty 365 days
Datasheet -
GB-T-27922
ISO-9001-2015
ISO-13485
ISO-14001
ISO-28000-2007
ISO-45001-2018
Product Attributes
Type Description
Product Status:Active
Technology:Capacitive Coupling
Type:General Purpose
Isolated Power:No
Number of Channels:3
Inputs - Side 1/Side 2:3/0
Channel Type:Unidirectional
Voltage - Isolation:2500Vrms
Common Mode Transient Immunity (Min):25kV/µs
Data Rate:150Mbps
Propagation Delay tpLH / tpHL (Max):23ns, 23ns
Pulse Width Distortion (Max):2ns
Rise / Fall Time (Typ):2ns, 2ns
Voltage - Supply:3.15V ~ 5.5V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:16-SOIC (0.295", 7.50mm Width)
Supplier Device Package:16-SOIC
