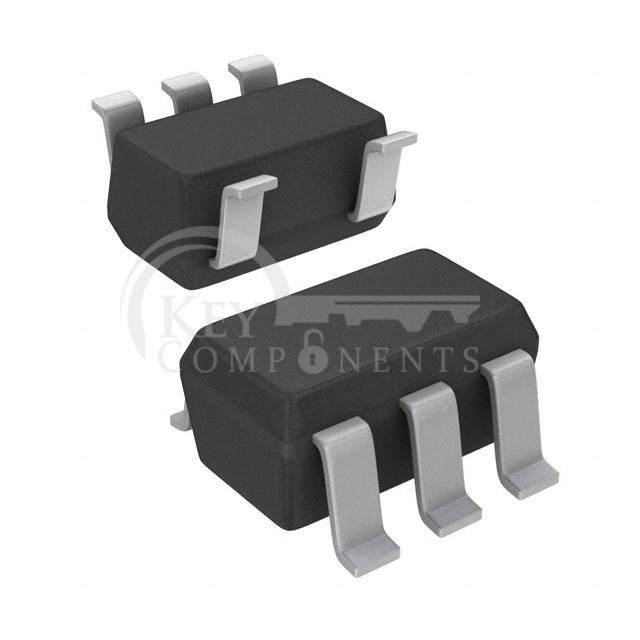

1P1G66QDBVRQ1
| Manufacturer Part | 1P1G66QDBVRQ1 |
|---|---|
| Manufacturer | Texas Instruments |
| Description | IC SWITCH 1X1 SOT23-5 |
| Category | Integrated Circuits (ICs) |
| RoHS | Lead free / RoHS Compliant |
| Warranty | 365 days |
| Datasheet | - |
Product Attributes
| Type | Description |
|---|---|
| Product Status: | Active |
| Switch Circuit: | SPST - NO |
| Multiplexer/Demultiplexer Circuit: | 1:1 |
| Number of Circuits: | 1 |
| On-State Resistance (Max): | 25Ohm |
| Channel-to-Channel Matching (ΔRon): | - |
| Voltage - Supply, Single (V+): | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 7.2ns, 6.9ns |
| -3db Bandwidth: | 300MHz |
| Charge Injection: | - |
| Channel Capacitance (CS(off), CD(off)): | 6pF |
| Current - Leakage (IS(off)) (Max): | 1µA |
| Crosstalk: | - |
| Operating Temperature: | -40°C ~ 125°C (TA) |
| Mounting Type: | Surface Mount |
| Package / Case: | SC-74A, SOT-753 |
| Supplier Device Package: | SOT-23-5 |
